Machining Department

Perfection is not attainable, but if we chase perfection, we can catch excellence.
The machining department is served by:

Soraluce FS 8000 x 3200 Heidenhain Cnc Milling and Boring Machine

Mobile column milling center, equipped with automatic head and with Heidenhain digital control unit mod. iTNC 530.

Soraluce FP 8000 x 2500 Heidenhain Cnc for Milling and Boring Machine

New generation mobile column milling machine equipped with automatic head and with Heidenhain control unit mod. iTNC 530.

Tos 5000 × 2500 Heidenhain Cnc boring machine

5-axis horizontal boring machine with CNC Heidenhain iTNC 530. Thanks to its characteristics, it allows to obtain a high precision of boring and milling on complex structures of max weight. 25,000 kg. Spindle Ø 130 mm with strokes W = 800 mm – Y = 2500 mm Rotating table dim. 1800 x 2200 mm with lat. Stroke X = 5000 mm Column with stroke Z = 1600 mm.

Castel Red 3000 × 2000 Heidenhain Cnc boring machine

Boring machine built on a single structure that integrates the transverse movement carriage. This solution allows for extremely compact and low working heights resulting in an optimal working position for the loading and tooling of the pieces to be machined. The head bearing the boring spindle runs centrally in the frame and is guided from both sides. The resulting qualities of rigidity are unapproachable by other traditionally designed boring machines and translate into high-capacity removal and especially in precision and quality.

Rosa CNC Iron 13.6 N Siemens grinding machine

X= 1650 mm Y= 550 mm Z= 880 mm Siemens control.

Ibarmia ZVH 45/L3000 D Star Edition - Heidenhain TNC 640 HSCI

5-axis machining center with mobile column.

Lathe Victor Taichung A2685YC

Lathe with motorized and Y axis.

MAS MCV 1000 5 AX Cnc Heidenhain machining center

5 axis roto-tilting vertical machining center with mobile table.

Filoerosione Fanuc

2 Fanuc wire erosion machines X= 350 mm Y= 220 mm Z= 250 mm (immersion) Maximum angle of taper: 20° FANUC control.

Charmilles Robofil 240 wire erosion

X= 350 mm Y= 250 mm Z= 220 mm (immersion) Maximum angle of taper: 30° FANUC control.

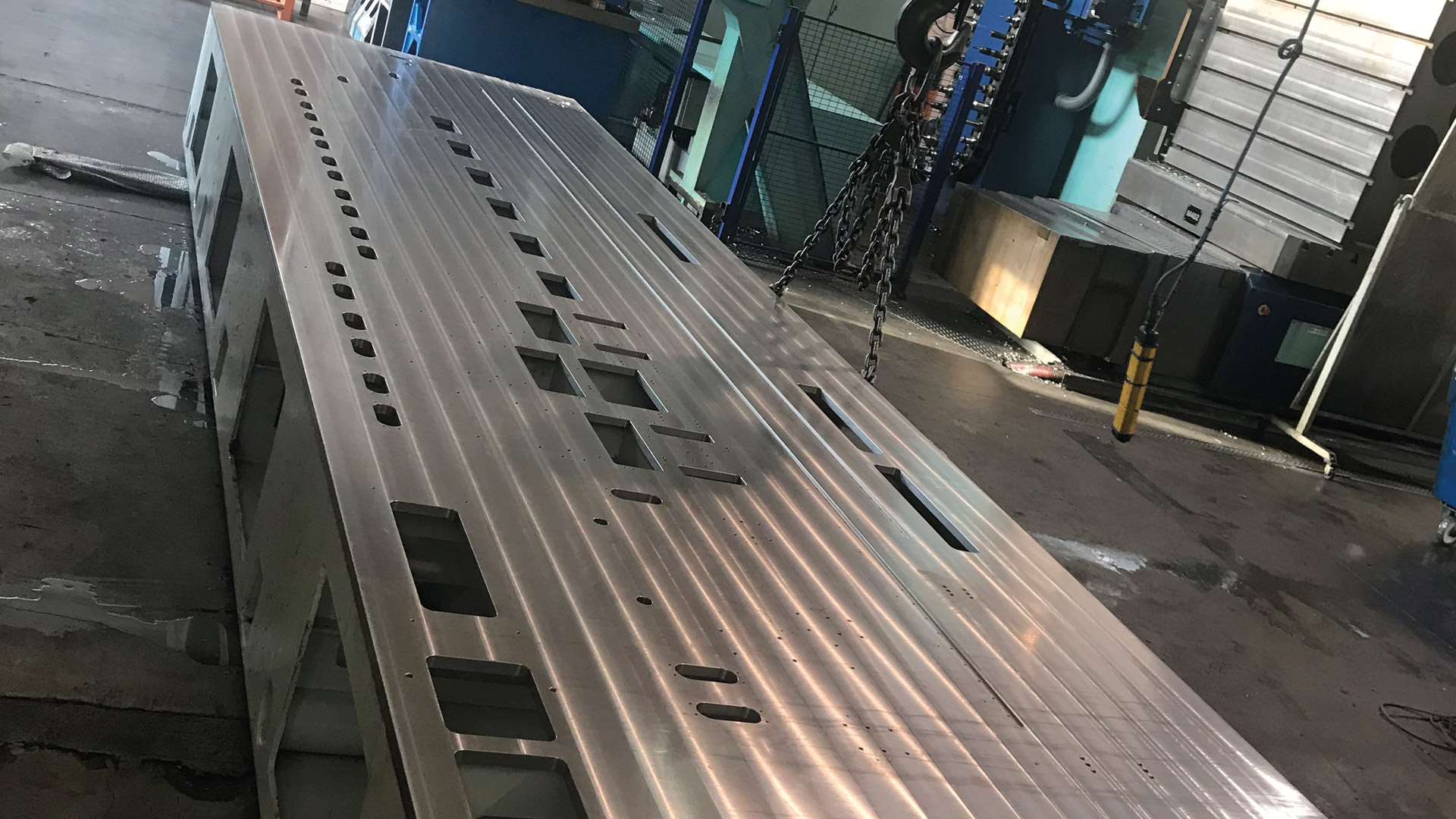

Examples of machining:
